Allen-Bradley

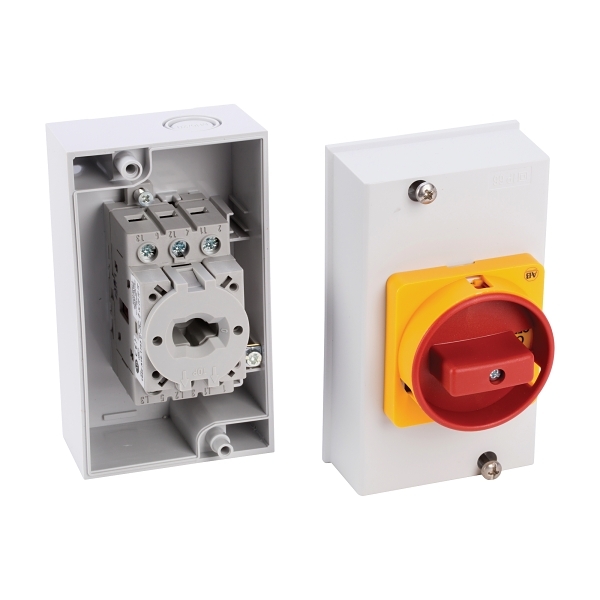

Allen-Bradley 194E Enclosed Disconnect Switch IP 65 Plastic, Type N Actuator Red/Yellow, 3 Pole 16A
- Item No.:
- 194EY16M17534N
- Product Range:
- 194E
Download product datasheet
Electrical
- Max. rated operation voltage Ue AC
- 690 V
- Rated uninterrupted current Iu
- 16 A
- Number of poles
- 3
- Frequency
- 50/60 Hz
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Rated operation power at AC-23, 400 V
- 7.5 kW
- Rated short-time withstand current lcw
- 800 kA
- Rated insulation voltage Ui
- 690 V
- Type of control element
- Long turning handle
Construction
- Device construction
- Complete device in housing
- Material housing
- Plastic
- Colour control element
- Red
- Degree of protection (IP), front side
- IP20
- Degree of protection (NEMA)
- 4X
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as emergency stop installation
- No
- Version as reversing switch
- No
Dimensions
- Height
- 120 mm
- Width
- 70 mm
- Depth
- 70 mm
- Connectable conductor cross section
- 1-10 mm²
