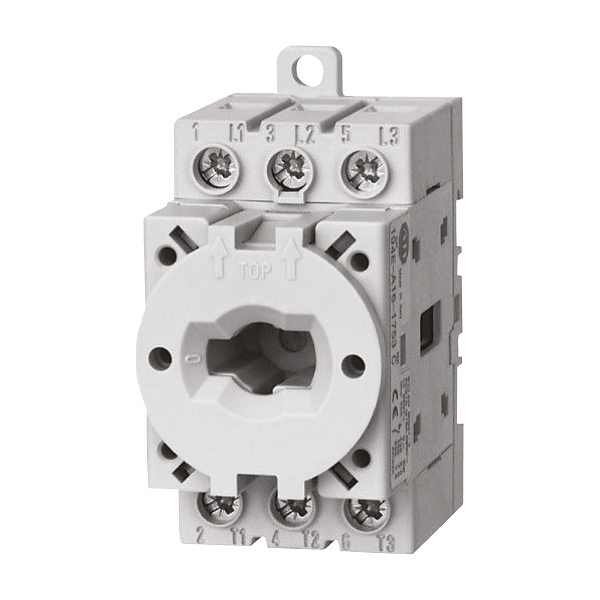

Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 100A
- Item No.:
- 194EA1001753
- Product Range:
- 194E
Download product datasheet
Electrical
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current at AC-21, 400 V
- 100 A
- Rated control supply voltage Us at AC 50HZ
- 400-690 V
- Rated uninterrupted current Iu
- 100 A
- Number of poles
- 3
- Frequency
- 60 Hz
- Rated operation power at AC-3, 400 V
- 37 kW
- Rated operation power at AC-23, 400 V
- 45 kW
- Rated short-time withstand current lcw
- 2500 kA
Construction
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Red
- Degree of protection (IP), front side
- IP20
- Degree of protection (NEMA)
- Other
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- No
- Version as emergency stop installation
- No
- Version as reversing switch
- No
Mechanical
- Padlock locking
- No
Dimensions
- Height
- 230 mm
- Width
- 175 mm
- Depth
- 120 mm
- Conductor cross section (solid, stranded)
- 4-50 mm²
- Connectable conductor cross section
- 4-50 mm²
Environment
- Rated surrounding temperature without derating
- 60 °C
- Storage temperature
- -40...80 °C
