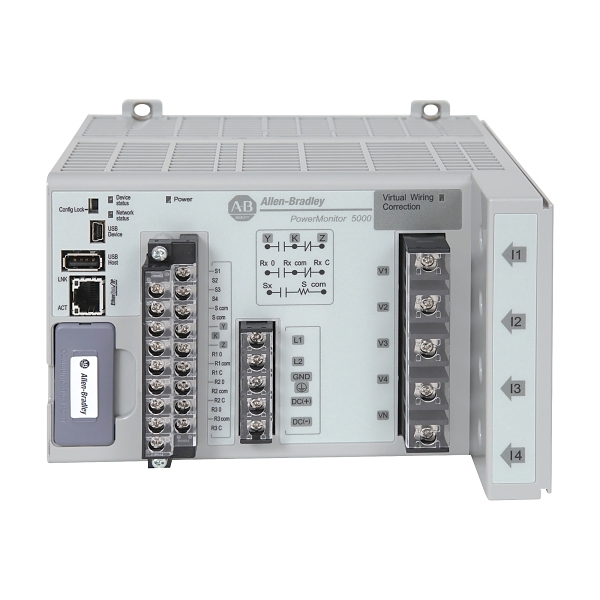

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley PM5000 M6 Power Quality Meter with EtherNet IP Comms
- Item No.:
- 1426M6E
- Product Range:
- Power Monitor 5000
Download product datasheet
Electrical
- Nominal voltage (Un) L-L
- 26-144 V
- Nominal voltage (Un) N-L
- 15-660 V
- Supply voltage AC 50 Hz
- 120-240 V
- Supply voltage AC 60 Hz
- 120-240 V
- Supply voltage DC
- 22.8-25.2 V
- Voltage type of supply voltage
- AC
- Number of voltage measurement inputs
- 4
- Number of current measurement inputs
- 4
- Accuracy class reactive energy according to IEC 62053-23
- Not suitable
Construction
- Number of analogue inputs
- 0
- Number of analogue outputs
- 0
- Number of digital inputs
- 0
- Number of digital outputs
- 0
- Degree of protection (IP), front side
- IP10
- Terminal type
- Screw
Mechanical
- Display
- None
Dimensions
- Height
- 132 mm
- Width
- 185 mm
- Depth
- 178 mm
Communication
- Configuration method
- Web-based
- Data transfer via PQDif
- No
- Fault record transmission via COMTRADE
- No
- Supporting protocol for IEC 61850 Ethernet
- No
- Supporting protocol for OPC UA PubSub
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for other bus systems
- No
Environment
- Operating temperature
- -20...70 °C
- Storage temperature
- -40...85 °C
- Humidity type
- Non-condensing
