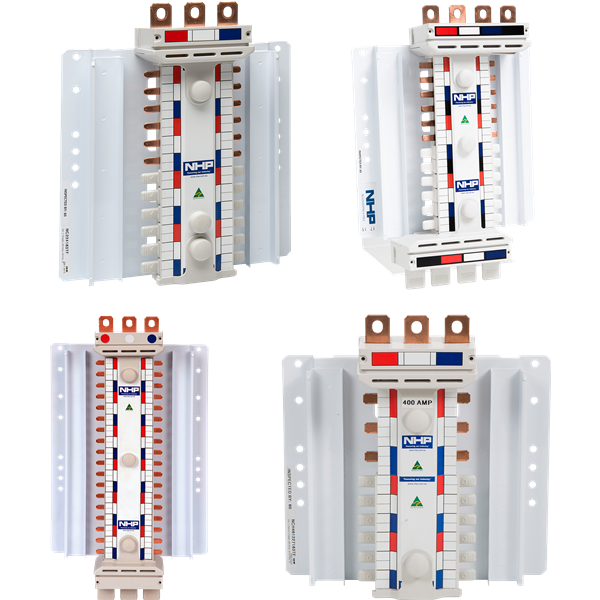

NHP POWERMAX DIN-T NC Busbar Chassis
NHP’s POWERMAX DIN-T NC Busbar Chassis is a high-performance electrical distribution solution, offering a range of features to meet the needs of any project. Available in 250A or 400A and designed for quick connection of DIN-T MCB's and RCBO's provides a safe method of electrical distribution. The chassis is made of high-quality copper, providing superior conductivity, strong durable busbar supports providing high withstand ratings, efficient performance and a longer lifespan of the electrical system. Offering easy maintenance with clear colour coded labelling to identify corresponding phase. Fully shrouded busbar providing touch protection. Designed to withstand harsh industrial environments and to meet the latest industry standards, ensuring safety and reliability.
Product Features
Compatible
Make connecting to busbar chassis much easier with a wide range of busbar connection kits.
Performance
Suits DIN-T MCBs and RCBOs up to 63A for complete high performance circuit protection and distribution solutions.
Retrofit
Simple replacement of older CD chassis with feature rich GB chassis.
Safety
Colour coded encapsulated busbar with range tee-off/busbar caps to provide touch protection against live busbar.
Standards
Compliance to AS/NZS 61439, AS/NZS 3000.
Wide Range
Single phase chassis and three phase chassis both with and without neutral in sizes from 6way to 96way. All available in top feed, bottom feed and universal feed.
