Carlo Gavazzi

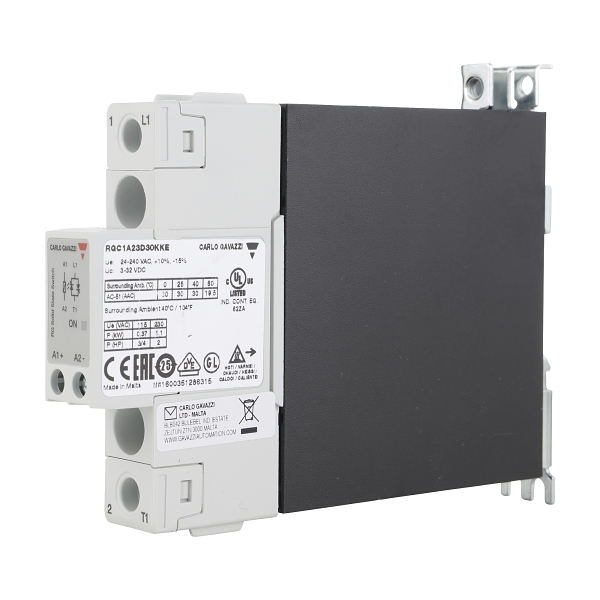

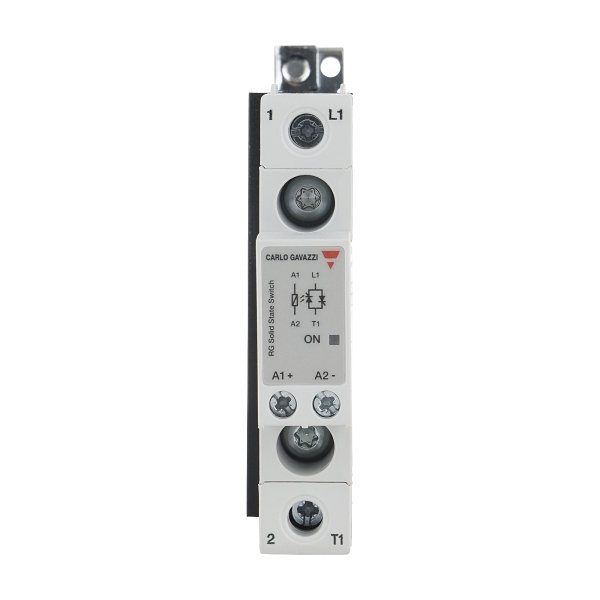

Carlo Gavazzi Solid State Relay 30A 24 to 240V AC Switching 3 to 32V DC Screw
Item No. RGC1A23D30KKE
Product Range: Solid State Relay
Popular Accessories
Component Type (ETIM Class)
Solid state relay
Electrical
Rated current In30 A
Rated control supply voltage Us at AC 50HZ0-0 V
Rated control supply voltage Us at AC 60HZ0-0 V
Rated control supply voltage Us at DC3-32 V
Voltage type for actuatingDC
Operating voltage24-264 V
Number of contacts as normally open contact1
Rated operation current Ie at AC-10 A
Rated operation current Ie at AC-30 A
Construction
IP ratingIP20
Modular versionYes

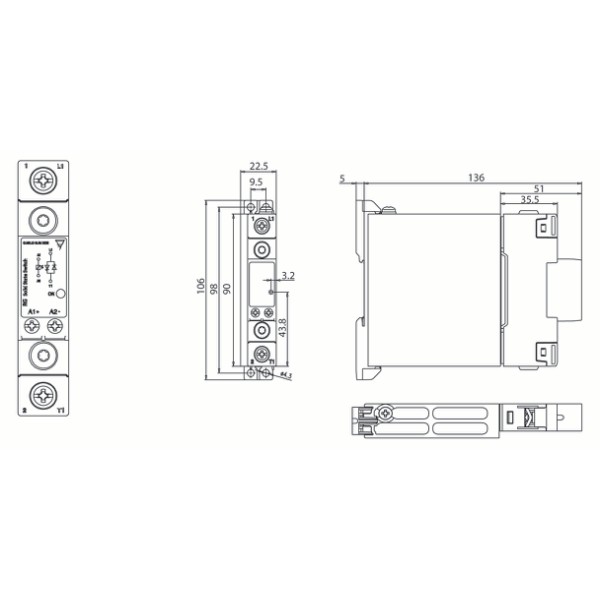

Dimensions
Height110 mm
Width22.5 mm
Depth140.5 mm
Weight0.38 kg
