Carlo Gavazzi

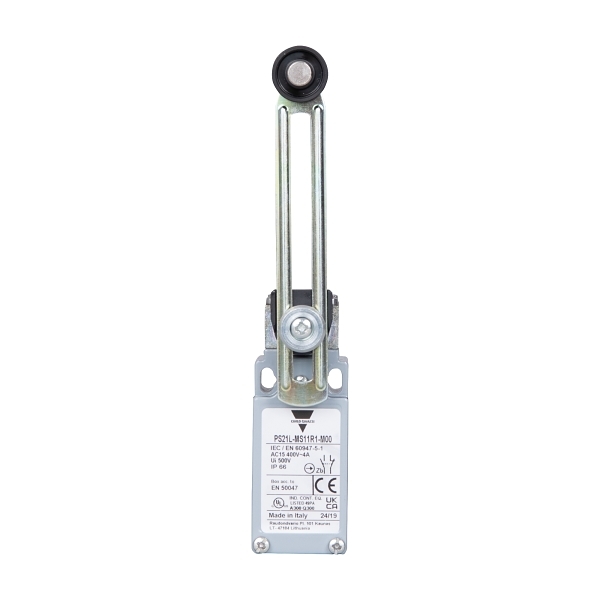

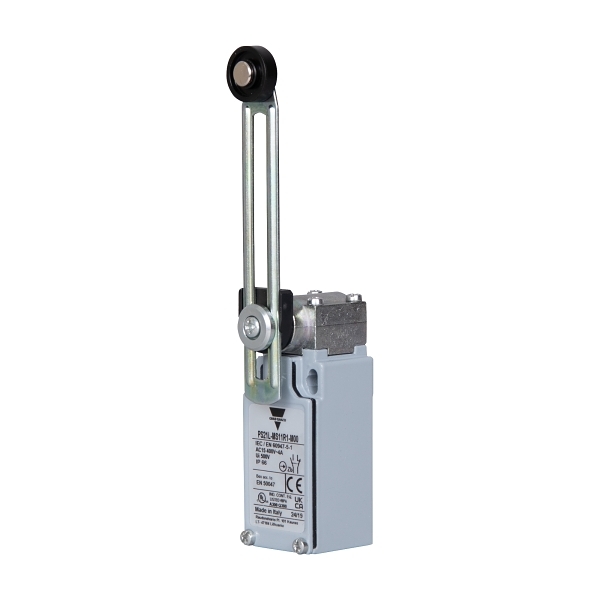

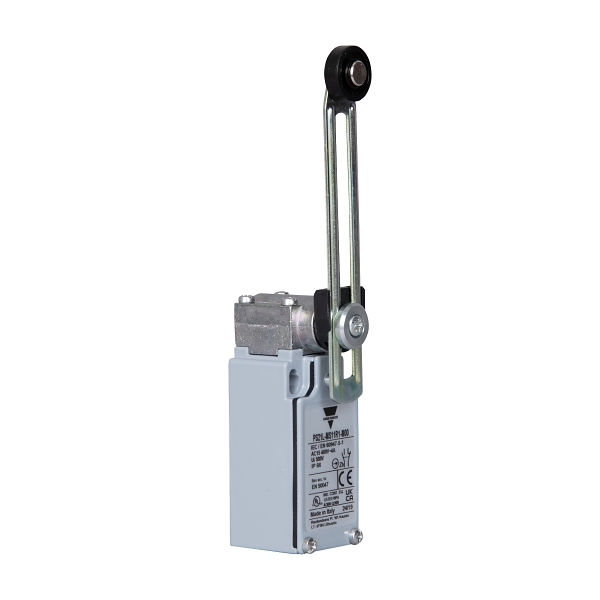

Carlo Gavazzi Limit Switch 30mm Metal Adjacent Roller Lever 1NC 1NO Snap M20
Item No. PS21LMS11R1M00
Product Range: CG Limit Switch
Popular Accessories
Component Type (ETIM Class)
End switch
Electrical
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Type of control elementRoller lever
Type of electric connectionCable entry metrical
Rated operation current Ie at AC-15, 24 V10 A
Rated operation current Ie at AC-15, 125 V5.5 A
Rated operation current Ie at AC-15, 230 V3.1 A
Rated operation current Ie at DC-13, 24 V2.8 A
Communication
Type of interfaceNone
Type of interface for safety communicationNone
Construction
Material housingMetal
IP ratingIP66
Construction type housingOther
Alignment of the control elementOther
Suitable for safety functionsYes
Mechanical
Switching functionQuick-break switch
Switching function latchingNo
With status indicationNo
Dimensions
Height of sensor45.5 mm
Length of sensor172.5 mm
Width sensor30.3 mm
Diameter sensor18 mm
Environment
Rated temperature-25-70 °C
Certificates/Approvals
Explosion safety category for gasOther
Explosion safety category for dustOther
