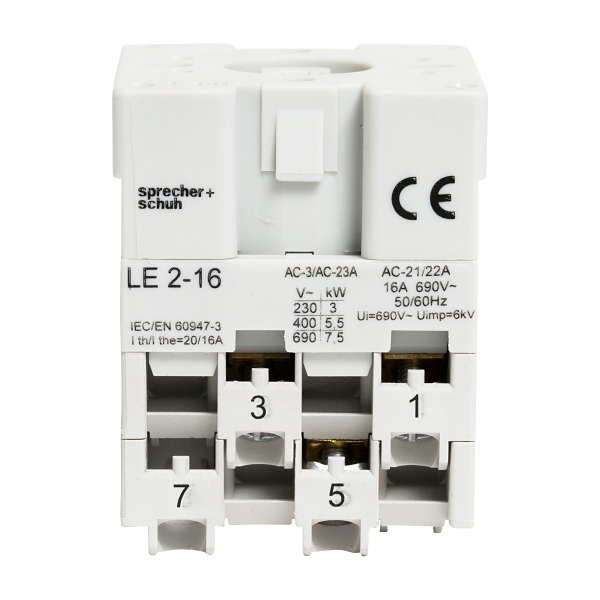

LE2161783 Cam Switch Body

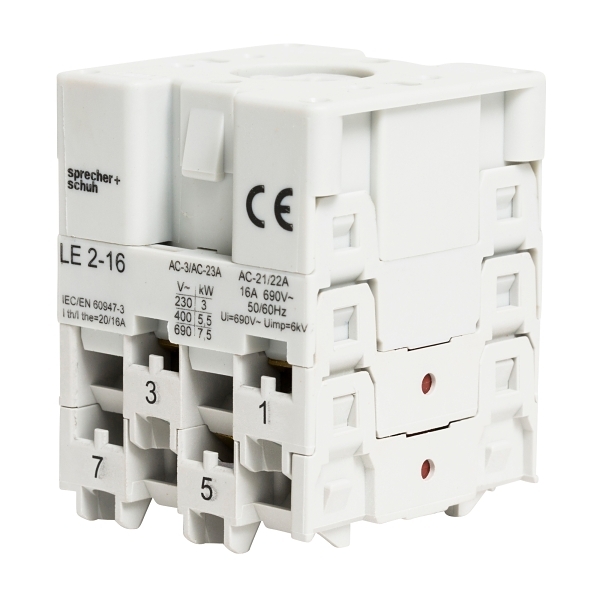

LE2161783 Cam Switch Body

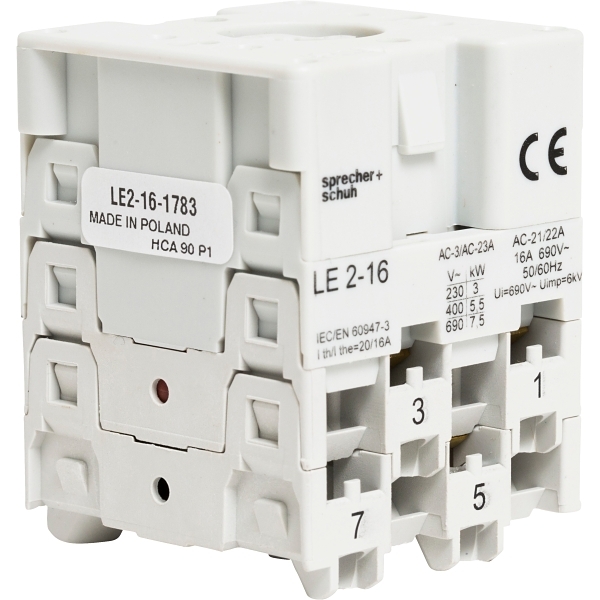

LE2161783 Cam Switch Body

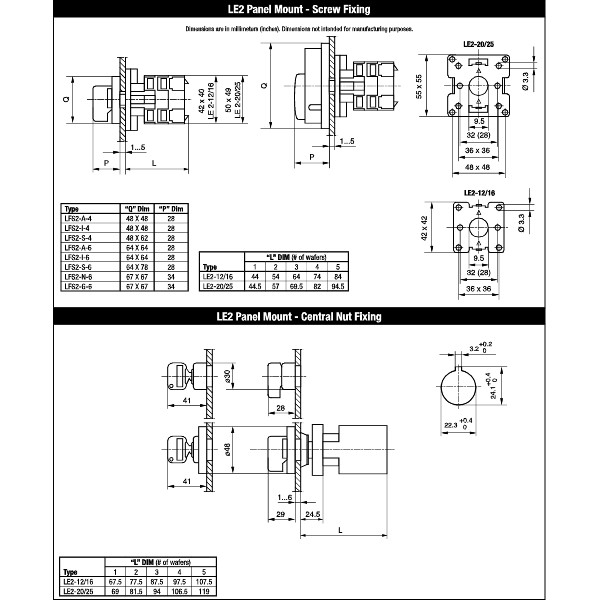

LE2161783 Switch Body Dimensional Diagram
LE2161783 Cam Switch Body
LE2161783 Cam Switch Body
LE2161783 Cam Switch Body
LE2161783 Switch Body Dimensional Diagram

Sprecher + Schuh

Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 16A Panel Mount

Item No. LE2161783
Product Range: L2 Cam Switch

Download product datasheet

Stock availability

  • Out-Of-Stock

    • Indent Item (Non-Returnable & Non-Cancellable)

    Want to view stock information?

    Log in

    Don't have an account?

    Register Here

    Popular Accessories

    Component Type (ETIM Class)
    Off-load switch
    Electrical
    Number of poles3
    Rated operation power at AC-3, 400 V5.5 kW
    Rated operation current Ie at AC-15, 230 V6 A
    Rated operation current Ie at AC-15, 400 V4 A
    Rated operation current Ie at AC-22a, 690 V16 A
    Rated operation current Ie at AC-22a, 220-500 V16 A
    Rated operation current Ie at AC-21a, 690V16 A
    Rated operation current Ie at AC-1, 690V16 A
    Ithe, thermal current (enclosed)16 A
    Construction
    ModelOn/Off switch
    Mounting methodFront mounting
    Material housingPlastic
    Wire/conductor size, rigid cable1-2.5 mm²
    Wire/conductor size, flex cable1-2.5 mm²
    Degree of protection (IP), front sideIP20
    Suitable for front mountingYes
    Complete device in housingNo
    Mechanical
    With zero (off) positionYes
    Mechanical life (service cycles)1000000 cycles
    Number of switch positions2
    With retraction in 0-positionNo
    Dimensions
    Depth54 mm
    Width42 mm
    Height42 mm
    Environment
    Operating temperature-25-60 °C
