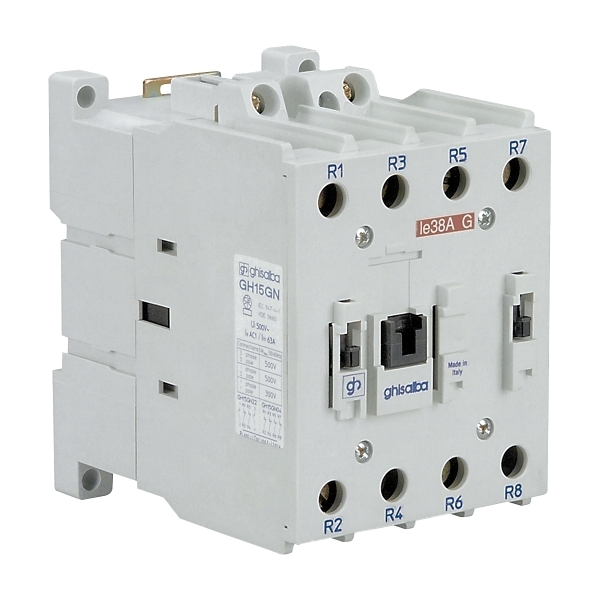

GH15JN40240VAC Contactor 30kW 4 Pole

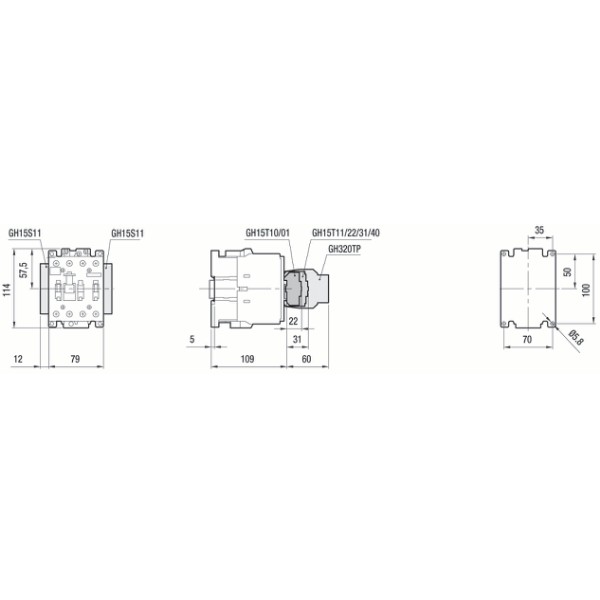

GH15JN40240VAC Contactor Dimensional Diagram
GH15JN40240VAC Contactor 30kW 4 Pole
GH15JN40240VAC Contactor Dimensional Diagram

Ghisalba

Ghisalba Contactor 30kW 4Pole 240VAC Coil

Item No. GH15JN40240VAC
Product Range: Contactors

Download product datasheet

Popular Accessories

Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact4
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V63 A
Rated operation power at AC-3, 400 V30 kW
Rated operation current Ie at AC-1, 400 V100 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ240 V
Number of auxiliary contacts as normally open contact0
Construction
IP ratingIP20
Mounting methodDIN-rail/screw
Dimensions
Height114 mm
Width79 mm
Depth109 mm
Weight1.3 kg
