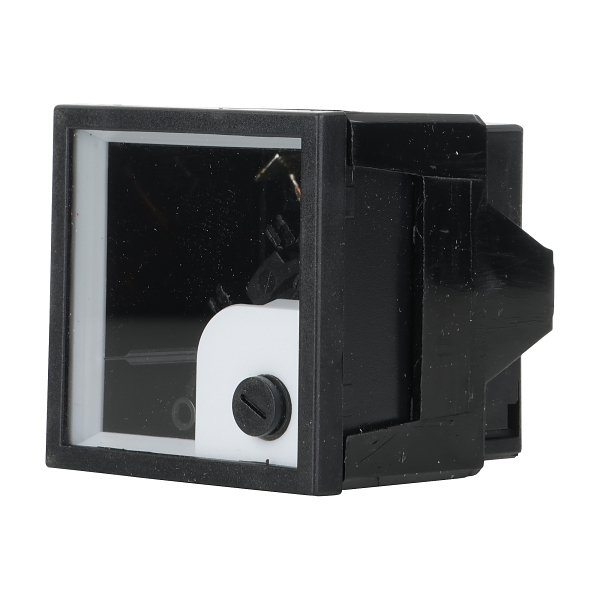

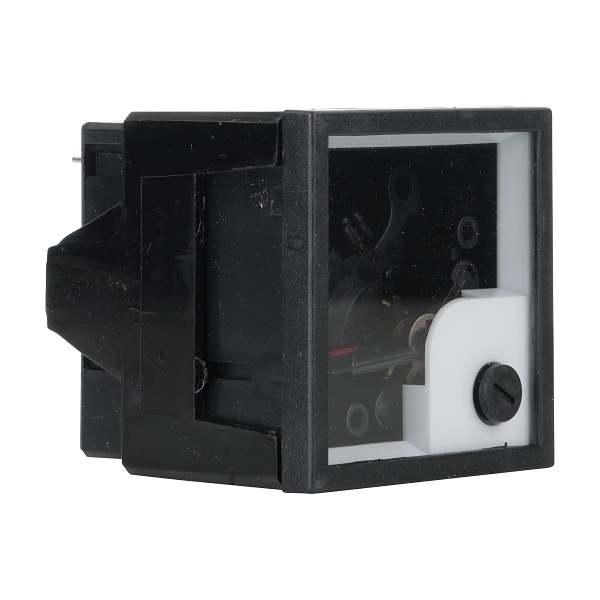

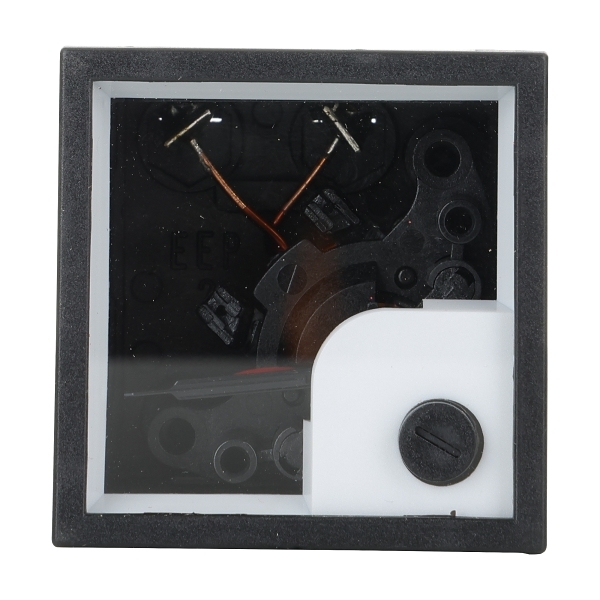

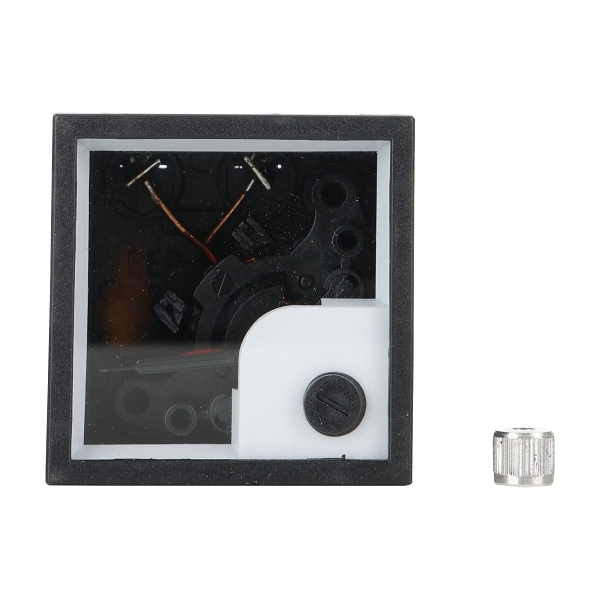

IME Ammeter 5A Current Transformer 25A AC Less Scale
Item No. RQ48EACT5A5XLS
Product Range: Analogue Meters
Component Type (ETIM Class)
Ampere meter for installation
Electrical
Nominal voltage600 V
Rated insulation voltage600 V
Type of measuring componentAnalogue
Accuracy class1.5
Voltage typeAC
Mains frequency50 Hz
Nominal frequency45-65
Input unitsA
Nominal end value of the scale5 A
Construction
ModelFront mounting
Housing materialPlastic
Measurement systemMoving coil
Degree of protection (IP), front sideIP52
Degree of protection (IP), front sideIP20
Modular versionNo
Scales lightingNo
Mechanical
Connection typeScrewed terminal
Number of meters displayed1
Max. needle deflection90 °
Dimensions
Ampmeter width48 mm
Ampmeter height48 mm
Height (cutout)45 mm
Width (cutout)45 mm
Depth69 mm
Width48 mm
Height48 mm
Environment
Storage temperature-40-80 °C
Operating temperature-25-50 °C
Pollution degree2
