Put safety first with Arc Fault Contained Drives!

Safety is our number one priority, as it is for our customers.

Arc faults can cause serious injury and even fatalities. Why put personnel in danger when you can install an arc fault contained variable speed drive? Rockwell Automation’s specially designed enclosure now adds another layer of personnel protection in the event of an arcing fault.

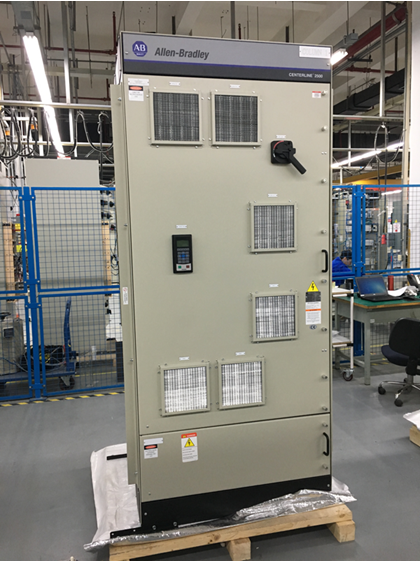

Variable speed drives have been difficult to design to withstand arcing faults due to critical failure points in vents and fans, but Rockwell Automation has designed the perfect solution - a patented arc baffle ventilation system which allows air flow under normal operating conditions, but under an arcing fault, diverts all gases flowing from the enclosure and provides no direct path for gas.

The floor mounted VSDs with arc baffle ventilation system have been successfully tested in accordance with IEC/TR Edition 3.0 and AS/NZ 3439.1 Annex ZD.

The range is available in a floor standing configuration up to 250kW.

Simplified integration
Rockwell Automation’s PowerFlex 750 offer seamless integration into the Logix environment for simplified and enhanced configuration, programming, diagnostics and maintenance.

The PowerFlex 750 series supports a comprehensive range of network protocols to ease integration into your architecture. The PowerFlex 755 features an embedded EtherNet/IP port, allowing you to easily manage drive data over EtherNet/IP networks.

Safe Torque-off and Safe Speed Monitor
Help protect personnel and equipment while reducing machine downtime with safety solutions up to and including PLe/SIL, Cat 3 and Cat 4.


Enclosure  IP 54, Floor Mounted
Temperature range 0-40oC
Voltage range 380...400V AC
Form of separation Form 4B, in accordance with AS/NZS 61439
Cable entry / exit Bottom / bottom
Normal Duty Rating at 400V  55kW   90 kW 132 kW  200 kW  250 kW
Heavy Duty Rating at 400V 45 kW  75 kW  110 kW 160 kW 200 kW
Width 702mm   902mm  902mm 1002mm 1002mm
 Depth 800mm  800mm  800mm  800mm  800mm
 Height 2300mm  2300mm 2300mm 2300mm 2300mm


Standard inclusions

• Incoming circuit breaker with shunt release and auxiliary contacts
• 24V DC power supply
• Door mounted human interface module
• 24V DC I/O module
• 4mm aluminium gland plate

• Line and load side reactors (which increase the overall width on certain sizes).

For further information on Rockwell Automation Arc Fault Drives, please call your local NHP Account Representative or email us:

Australia - 1300 NHP NHP nhpsales@nhp.com.au
New Zealand - 0800 NHP NHP sales@nhp-nz.com
