RCD protection has never been easier, thanks to NHP’s MOD6 and DIN-T RCBOs .

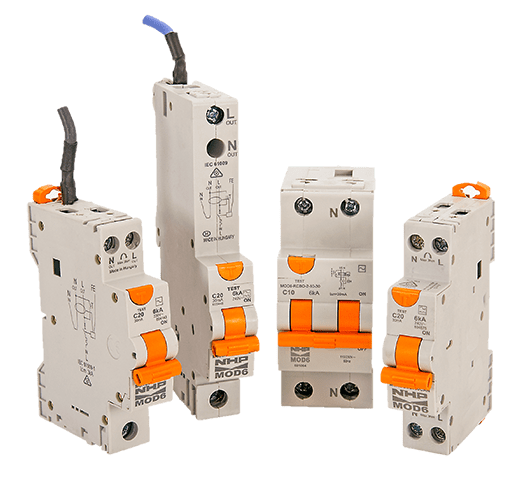

MOD6 RCBOs offer Type A earth leakage protection while complying electrical safety regulations by switching both active and neutral conductors. These are available in different forms for single phase applications and 4P width for three phase applications.
The compact 1P RCBO with pigtail offers the flexibility to be suitable for mounting in an insulated switchboard using busbar comb or into a distribution board using a busbar chassis. Another benefit is that it is interchangeable with an MCB as the form and fit is the same as an MCB, which allows the easy upgrade of individual circuits to now have earth leakage protection.
The single phase RCBOs are available in 6kA rating with either 30mA or 10mA sensitivities. There are also 3P plus neutral RCBOs available to purchase for an easy upgrade from 3P MCB to RCBO.
NHP’s DIN-T range of RCBOs offers solutions for commercial or industrial applications. These RCBOs are also available in compact versions, which save valuable wiring room compared to the traditional longer body housing.
DIN-T RCBOs include either 6kA or 10kA short circuit ratings in 10mA, 30mA sensitivities and RCCBs in 30mA, 100mA and 300mA sensitivities.
DIN-T is a comprehensive range of RCDs from Type A, Type F to Type B. It is important to select the correct type of RCD for the application as referred to in the wiring rules AS/NZS 3000:2018 Cl 2.6.2.1. Manufacturer instructions will usually provide guidance on the correct type of RCD to be used. For more information on the range, please refer to our website or price book.
For more information, please contact your local NHP Account Representative or email us:
Australia 1800 647 647 nhpsales@nhp.com.au
New Zealand 0800 647 647 sales@nhp-nz.com
