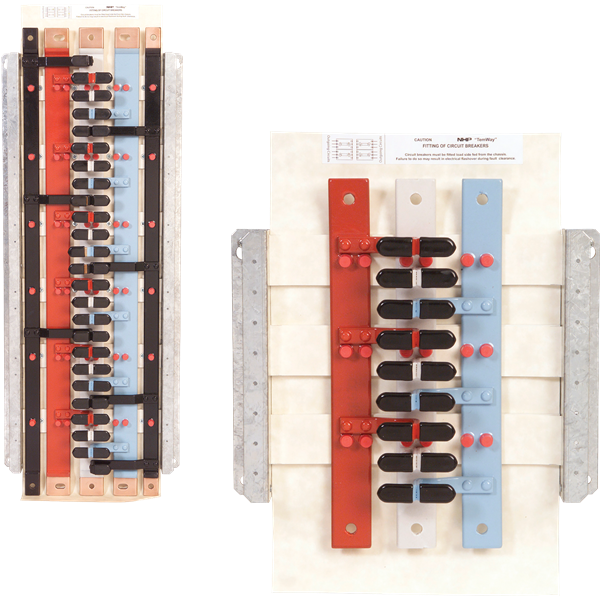

XAP Moulded Case Circuit Breaker Chassis

NHP's Moulded Case Circuit Breaker chassis system offers an efficient and reliable solution for mounting MCCBs in groups as part of a larger power distribution system. TemWay XEP chassis busbar systems are available in a double-sided configuration and are suitable for TemBreak PRO A160 MCCBs. The XEP chassis includes fully insulated 630A main busbars and top and bottom feed options.

XAP Moulded Case Circuit Breaker Chassis

Product Features

Compatible

Compatible

Suits the TemBreak PRO P160 thermal magnetic and electronic MCCBs for complete high performance circuit protection and distribution solutions.

Performance

Performance

Rated up to 36kA for 1 second.

Retrofit

Retrofit

Optional side rail accessories are available to install ZS125 ELCBs and previous TemBreak 1 and 2 MCCBs.

Safety

Safety

Fully insulated 630A/800A main busbars, with tee-off caps to provide touch protection against live busbar.

Standards

Standards

Complies with AS/NZS 61439, AS/NZS 3000, for peace of mind performance and compliance.

Wide Range

Wide Range

Double sided, three and four pole chassis in sizes from 12way to 72way all available in top and bottom feed.
