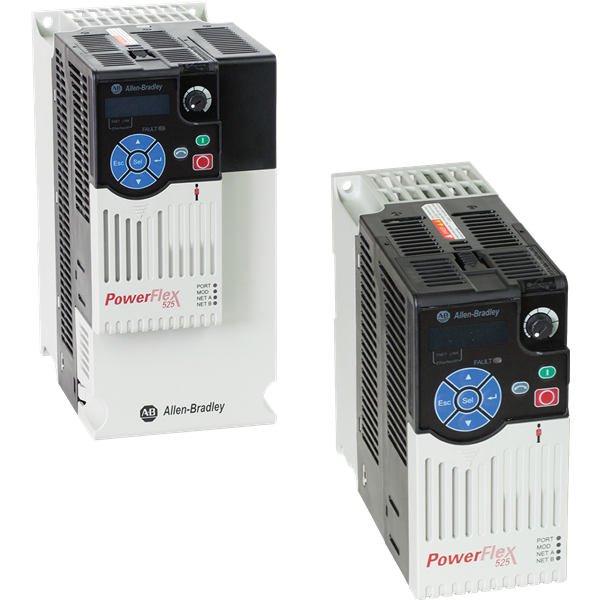

Allen-Bradley PowerFlex 525 Drives
The Allen-Bradley PowerFlex® 525 AC Drives are a compact and cost-effective drive offering embedded EtherNet/IP™ communications ideal for integrated applications, USB programming, and standard safety features such as safe torque off. Available in a wide range of motor control capabilities including V/Hz, sensorless vector control, closed loop velocity vector control and permanent magnet motor control. Features an innovative and modular design to supports fast and easy installation and configuration up to 22kW.
Product Features
Compact
Available with Zero Stacking Drive for ambient temperatures up to 45 °C.
Configurable
Designed for streamlined configuration and programming with easy installation and commissioning with integrated wizards and workflows.
Ethernet Connectivity
Fitted with embedded Ethernet/IP port for networked solutions as well as 7 digital inputs, 2 digital outputs, 1 analogue output and 2 relay outputs.
Integrated
Features LCD Human Interface Module with multi-language support and MainsFree programming via USB.
Safety
Available with hardwire safe torque off capability.
Wide Range
Available with a wide operating temperature range from 0°C to 50°C and up to 70°C with current derating and optional control module fan kit.
